Wheel Brush Accessories

Wheel Brush Adapter Plates for 6", 8", 10" Diameter

These slip-fit metal adapters are used for mounting nylon abrasive wheel brushes onto smaller shafts. Sold in pairs. Available for 4-1/4" and 5-1/4" brush inner diameter wheels and 2" brush inner diameter wheels.

Product Detail

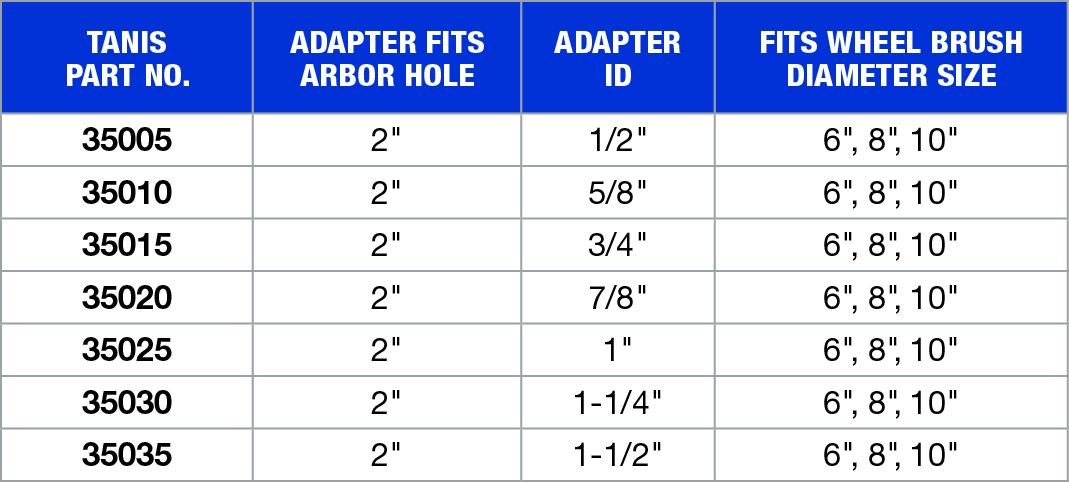

TANIS PART NO. ADAPTER FITS ARBOR HOLE ADAPTER ID FITS WHEEL BRUSH DIAMETER SIZE
35005 2" 1/2" 6", 8", 10"
35010 2" 5/8" 6", 8", 10"
35015 2" 3/4" 6", 8", 10"
35020 2" 7/8" 6", 8", 10"
35025 2" 1" 6", 8", 10"
35030 2" 1-1/4" 6", 8", 10"
35035 2" 1-1/2" 6", 8", 10"

Wheel Brush Adapter Plates

These slip-fit metal adapters are used for mounting nylon abrasive wheel brushes onto smaller shafts. Sold in pairs. Available for 4-1/4" and 5-1/4" brush inner diameter wheels and 2" brush inner diameter wheels.


Product Detail

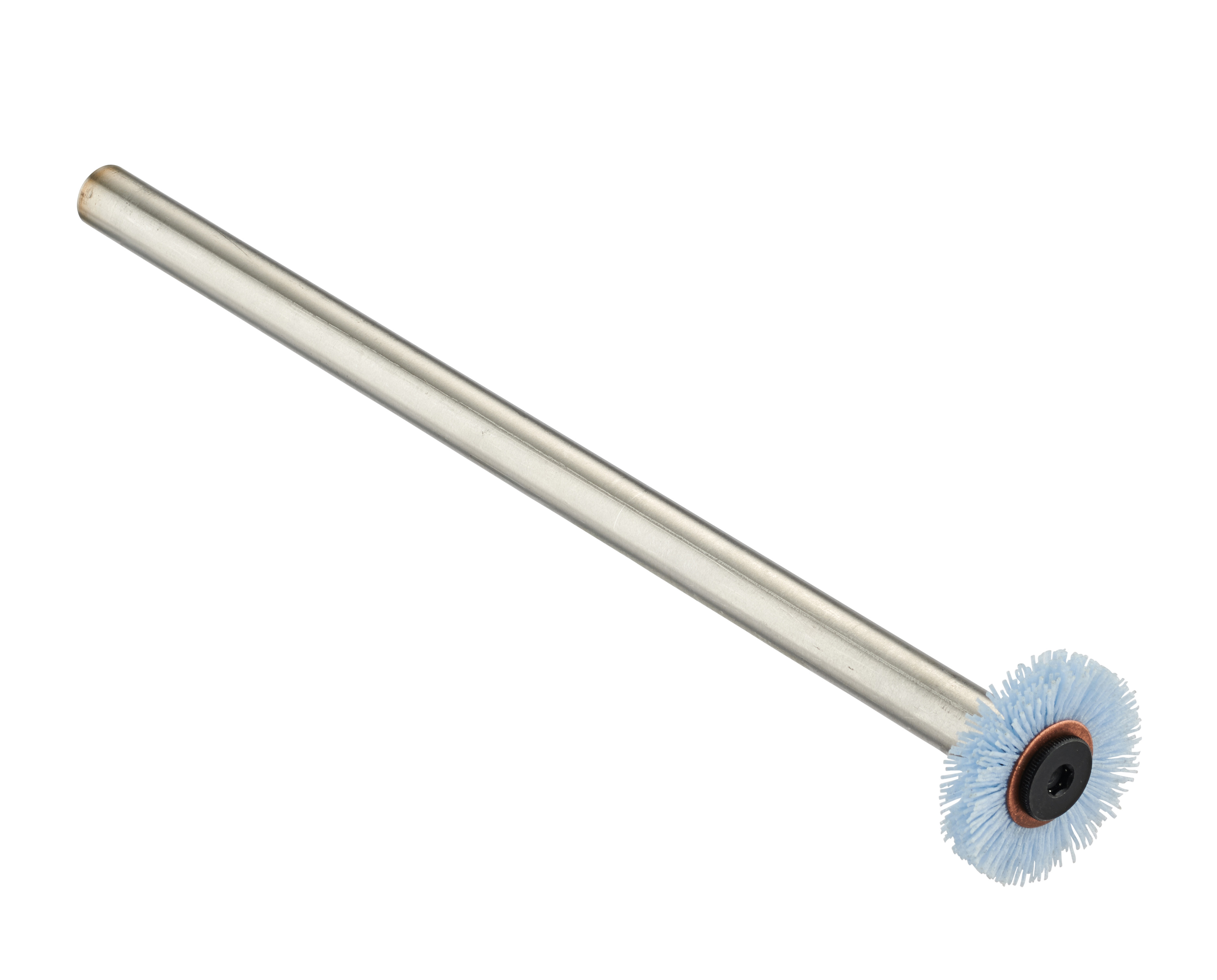

Wheel Brush Extensions

If you are using a small diameter wheel and are looking for extra length, a brush extension is just what you need. We have 6” extensions for 1/40” arbor holes and 12” brush extensions for 1/2" and 5/8” arbor holes.

Product Detail

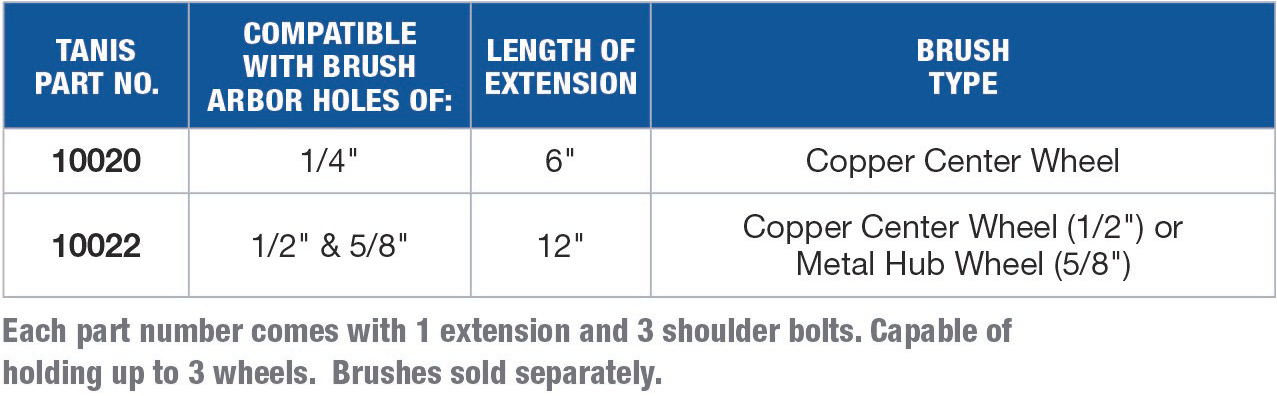

TANIS PART NO. COMPATIBLE WITH BRUSH ARBOR HOLES OF: LENGTH OF EXTENSION BRUSH TYPE
10020 1/4" 6" Copper Center Wheel
10022 1/2" & 5/8" 12" Copper Center Wheel (1/2") or Metal Hub Wheel (5/8")

Each part number comes with 1 extension and 3 shoulder bolts. Capable of holding up to 3 wheels. Brushes sold separately.

Air Motor Shanks

For use with air motors and flexible shafts. Can be used with a single brush or multiple brushes.

Product Detail

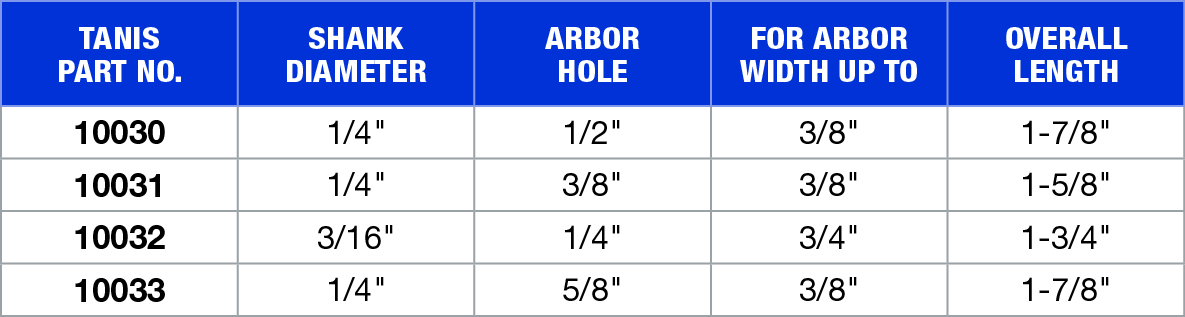

TANIS PART NO. SHANK DIAMETER ARBOR HOLE FOR ARBOR WIDTH UP TO OVERALL LENGTH
10030 1/4" 1/2" 3/8" 1-7/8"
10031 1/4" 3/8" 3/8" 1-5/8"
10032 3/16" 1/4" 3/4" 1-3/4"
10033 1/4" 5/8" 3/8" 1-7/8"

Drill Press Shanks

For use in portable tools and drill presses with 1/4" chuck adaptability

Product Detail

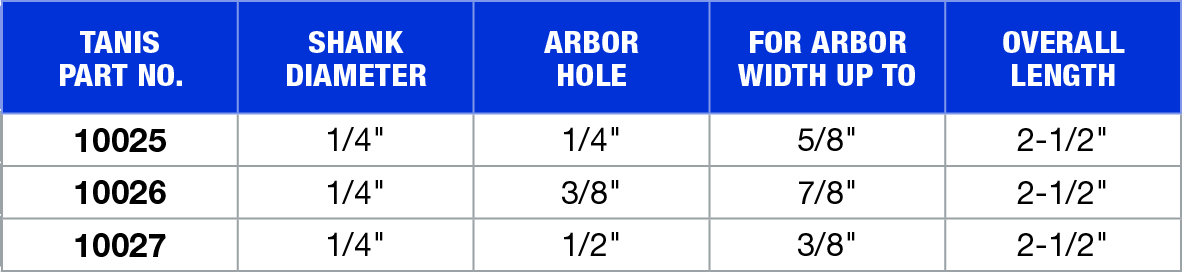

TANIS PART NO. SHANK DIAMETER ARBOR HOLE FOR ARBOR WIDTH UP TO OVERALL LENGTH
10025 1/4" 1/4" 5/8" 2-1/2"
10026 1/4" 3/8" 7/8" 2-1/2"
10027 1/4" 1/2" 3/8" 2-1/2"

Plastic Bushings

Plastic Bushings are designed for economical, one-time use to match the brush inside diameter with your mounting shaft. Available in a range of inner and outer diameters. Use only one per brush.

Product Detail

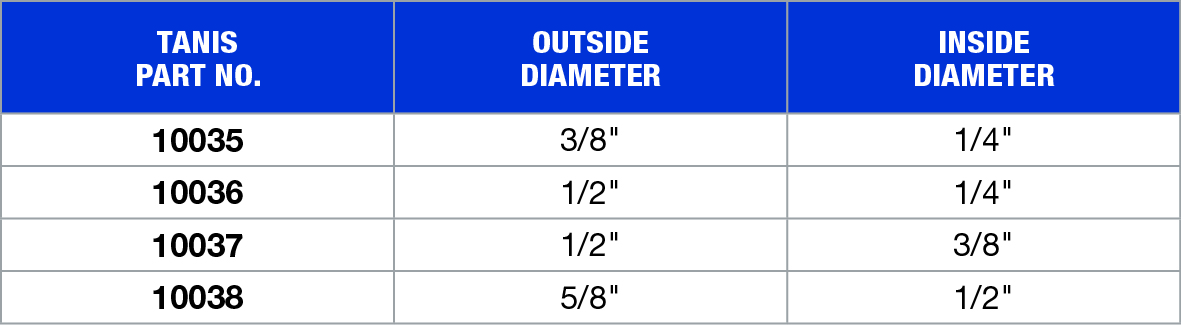

TANIS PART NO. OUTSIDE DIAMETER INSIDE DIAMETER
10035 3/8" 1/4"
10036 1/2" 1/4"
10037 1/2" 3/8"
10038 5/8" 1/2"
