Abrasive Nylon Disc Brushes

CeramiX® Abrasive Nylon Disc Brushes - Tufted Pattern

Need top-notch deburring and surface finishing? Our Tufted Pattern Disc Brush Set is built to last with durable urethane composite and CeramiX® filament with 3M™ abrasive grain. Ideal for industrial tasks, the unique tufted pattern enhances flexibility for complex grooves and keyways. Perfect for heavy-duty nylon brushing, metal finishing, and abrasive cleaning.

Product Details

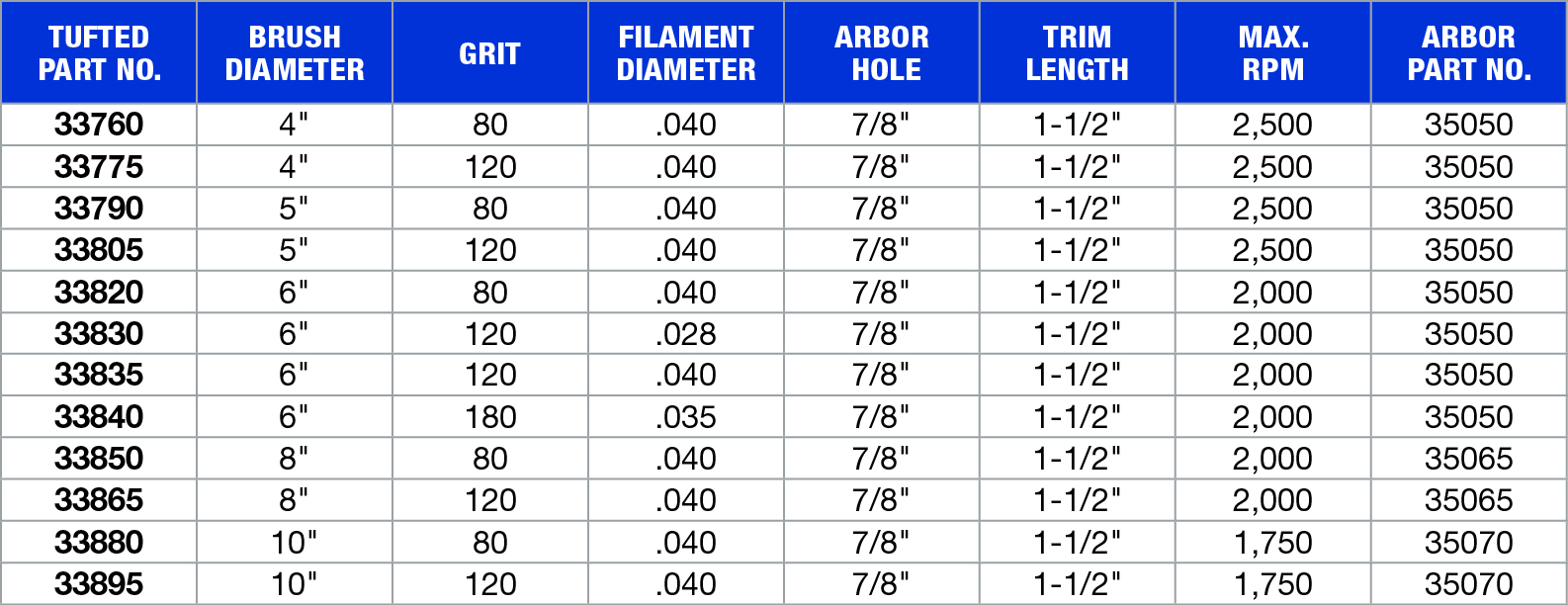

TUFTED PART NO. BRUSH DIAMETER GRIT FILAMENT DIAMETER ARBOR HOLE TRIM LENGTH MAX. RPM ARBOR PART NO.
33760 4" 80 .040 7/8" 1-1/2" 2,500 35050
33775 4" 120 .040 7/8" 1-1/2" 2,500 35050
33790 5" 80 .040 7/8" 1-1/2" 2,500 35050
33805 5" 120 .040 7/8" 1-1/2" 2,500 35050
33820 6" 80 .040 7/8" 1-1/2" 2,000 35050
33830 6" 120 .028 7/8" 1-1/2" 2,000 35050
33835 6" 120 .040 7/8" 1-1/2" 2,000 35050
33840 6" 180 .035 7/8" 1-1/2" 2,000 35050
33850 8" 80 .040 7/8" 1-1/2" 2,000 35065
33865 8" 120 .040 7/8" 1-1/2" 2,000 35065
33880 10" 80 .040 7/8" 1-1/2" 1,750 35070
33895 10" 120 .040 7/8" 1-1/2" 1,750 35070

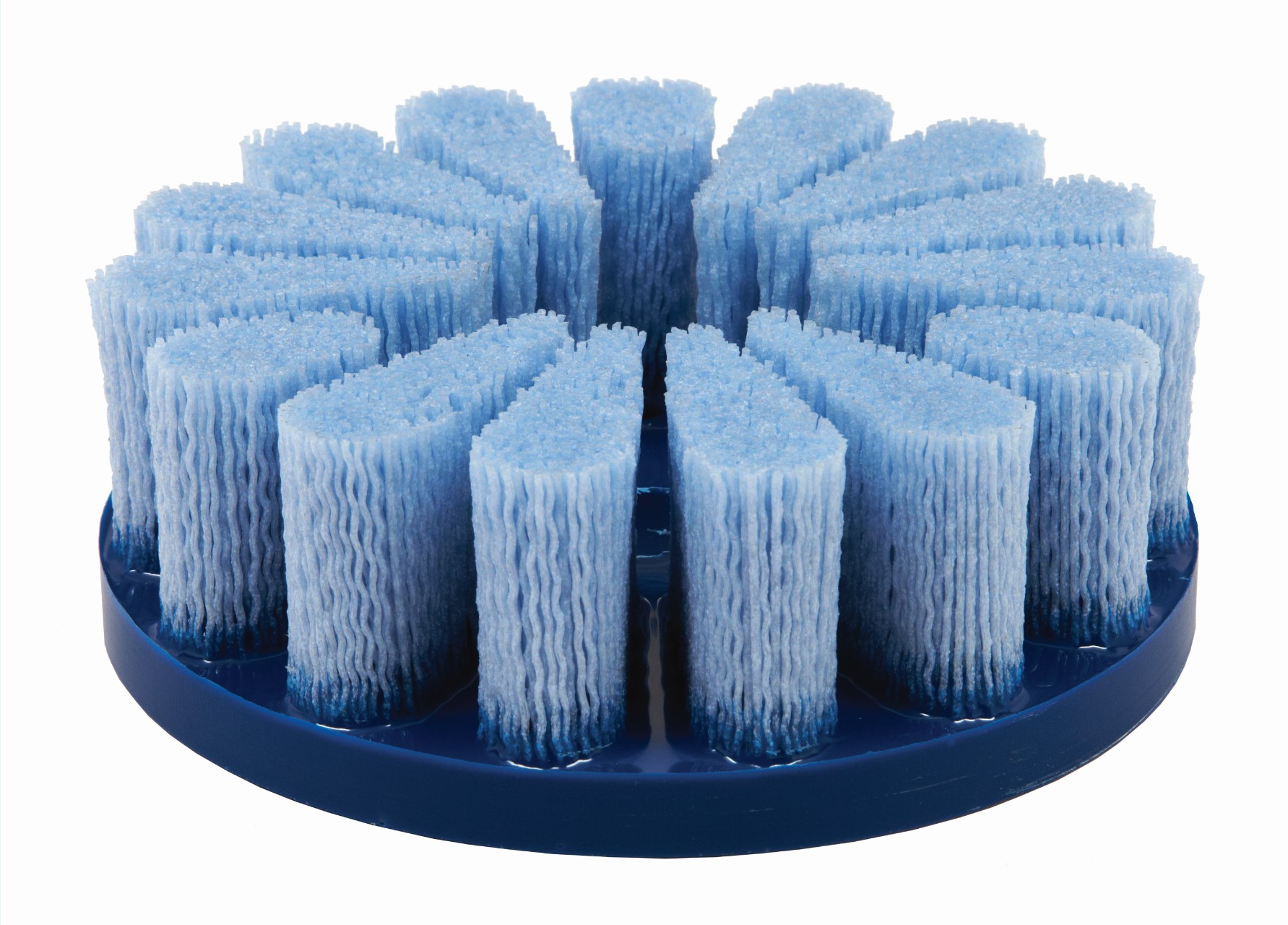

CeramiX® Abrasive Nylon Disc Brushes - Teardrop Pattern

Our teardrop pattern disc brush is a higher density brush that provides more filament strands working to deburr a part and offers great coolant flow through. Our exclusive filament features 3M™ Abrasive Grain that creates a superior performance, long-lasting brush due to its self-sharpening characteristic.

Product Detail

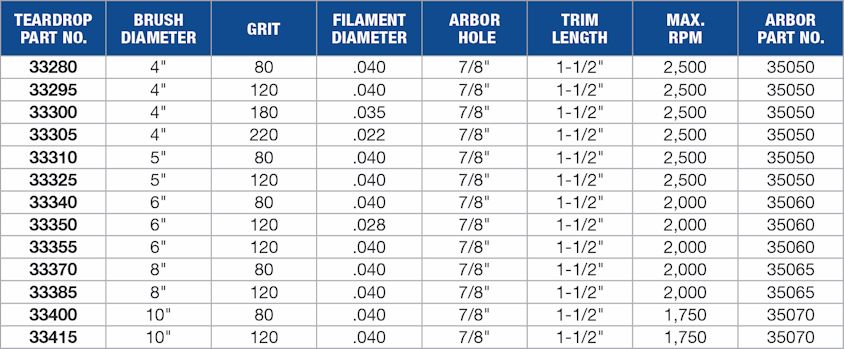

TEARDROP BRUSH PART NO. BRUSH DIAMETER GRIT FILAMENT DIAMETER ARBOR HOLE TRIM LENGTH MAX. RPM ARBOR PART NO.
33280 4" 80 .040 7/8" 1-1/2" 2,500 35050
33295 4" 120 .040 7/8" 1-1/2" 2,500 35050
33300 4" 180 .035 7/8" 1-1/2" 2,500 35050
33305 4" 220 .022 7/8" 1-1/2" 2,500 35050
33310 5" 80 .040 7/8" 1-1/2" 2,500 35050
33325 5" 120 .040 7/8" 1-1/2" 2,500 35050
33340 6" 80 .040 7/8" 1-1/2" 2,000 35060
33350 6" 120 .028 7/8" 1-1/2" 2,000 35060
33355 6" 120 .040 7/8" 1-1/2" 2,000 35060
33370 8" 80 .040 7/8" 1-1/2" 2,000 35065
33385 8" 120 .040 7/8" 1-1/2" 2,000 35065
33400 10" 80 .040 7/8" 1-1/2" 1,750 35070
33415 10" 120 .040 7/8" 1-1/2" 1,750 35070

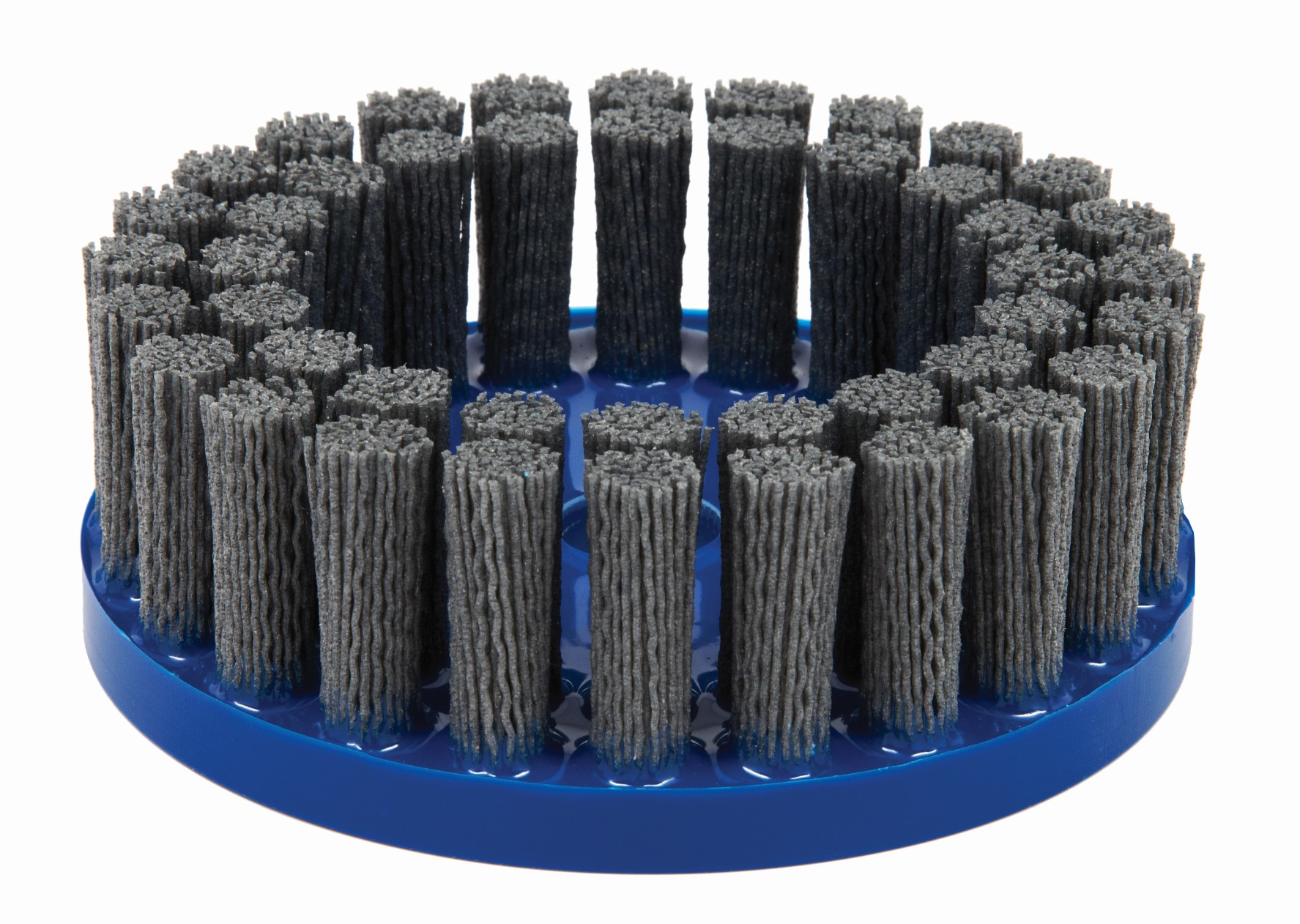

Silicon Carbide Abrasive Nylon Disc Brushes - Tufted Pattern

When the finish of your part is paramount, our silicon carbide disc brush may be the best brush solution to meet your needs. Built with our durable urethane-based construction, our silicon carbide disc brush will provide significant abrasive action while leaving more of a gloss finish. The tufted pattern allows for excellent filament flexibility.

Product Detail

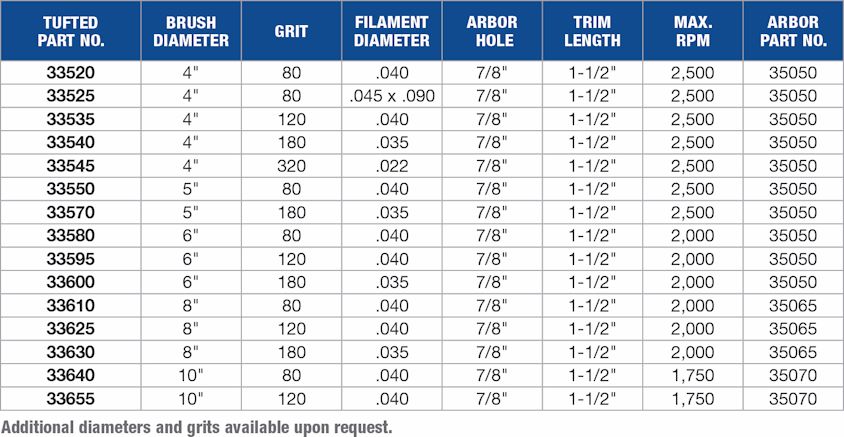

Tufted Part No. Brush Diameter Grit Filament Diameter Arbor Hole Trim Length Max. RPM Arbor Part No.
33520 4" 80 .040 7/8" 1-1/2" 2500 35050
33525 4" 80 .045 x .090 7/8" 1-1/2" 2500 35050
33535 4" 120 .040 7/8" 1-1/2" 2500 35050
33540 4" 180 .035 7/8" 1-1/2" 2500 35050
33545 4" 320 .022 7/8" 1-1/2" 2500 35050
33550 5" 80 .040 7/8" 1-1/2" 2500 35050
33570 5" 180 .035 7/8" 1-1/2" 2500 35050
33580 6" 80 .040 7/8" 1-1/2" 2000 35050
33595 6" 120 .040 7/8" 1-1/2" 2000 35050
33600 6" 180 .035 7/8" 1-1/2" 2000 35050
33610 8" 80 .040 7/8" 1-1/2" 2500 35065
33625 8" 120 .040 7/8" 1-1/2" 2500 35065
33630 8" 180 .040 7/8" 1-1/2" 2500 35065
33640 10" 80 .040 7/8" 1-1/2" 1750 35070
33655 10" 120 .040 7/8" 1-1/2" 1750 35070

Additional diameters and grits available upon request.

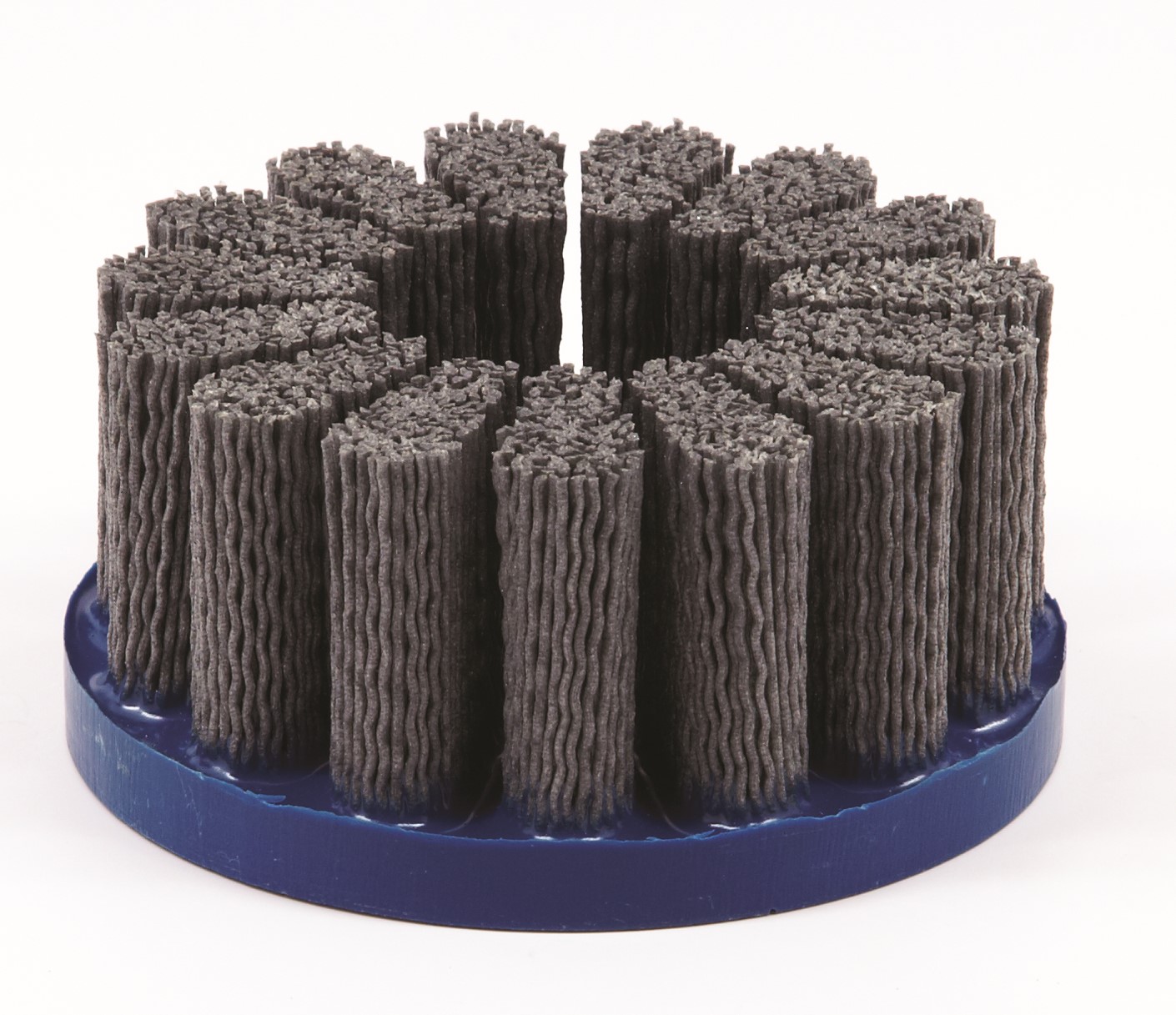

Silicon Carbide Abrasive Nylon Disc Brushes - Teardrop Pattern

The teardrop pattern disc brush offers more filament density while maintaining high performance. Built with our strong urethane-based resin, our silicon carbide disc brush will provide abrasive action in a gloss finish.

Product Detail

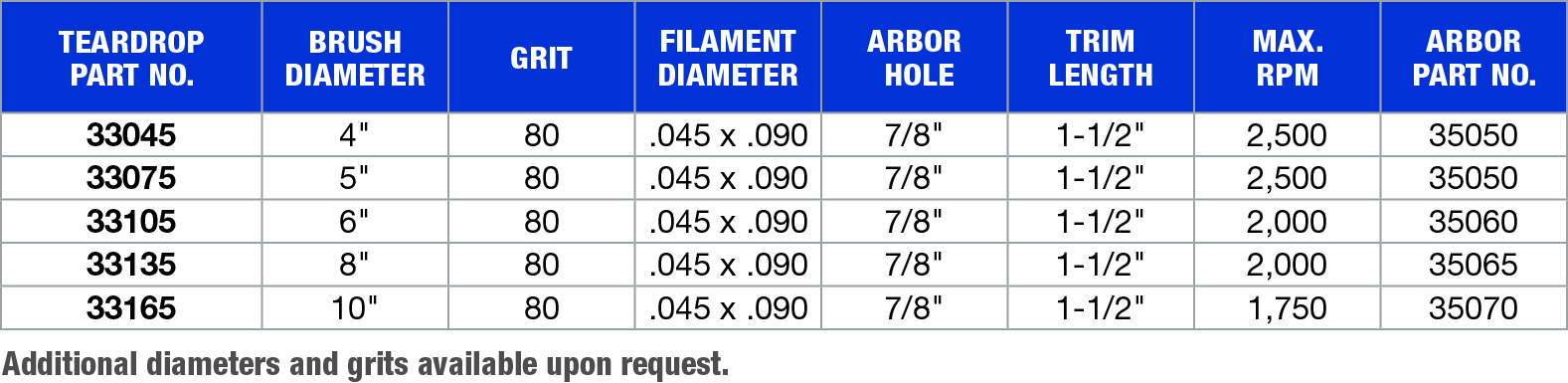

TEARDROP PART NO. BRUSH DIAMETER GRIT FILAMENT DIAMETER ARBOR HOLE TRIM LENGTH MAX. RPM ARBOR PART NO.
33045 4" 80 .045 x .090 7/8" 1-1/2" 2,500 35050
33075 5" 80 .045 x .090 7/8" 1-1/2" 2,500 35050
33105 6" 80 .045 x .090 7/8" 1-1/2" 2,000 35060
33135 8" 80 .045 x .090 7/8" 1-1/2" 2,000 35065
33165 10" 80 .045 x .090 7/8" 1-1/2" 1,750 35070

Additional diameters and grits available upon request.

Disc Brush Drive Arbor

The disc brush drive arbor is used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is ¾” diameter for use in any live tool holder. Coolant flow thru shaft and bolt. Drive arbor includes bolt and washer, part no. 35075.

Product Detail
DRIVE ARBOR PART NO. FOR BRUSH DIAMETER SHAFT DIAMETER NUMBER OF LOCATOR PINS
35050 3", 4", 5" 3/4" 2
35055 6" 3/4" 2
*35060 6" 3/4" 3
35065 8" 3/4" 4
35070 10", 12", 14" 3/4" 4

*Use with 6" teardrop pattern disc brushes.


REPLACEMENT BOLT/WASHER KIT FOR BRUSH DIAMETER
35075 ALL
